TCHD Digital Video Technology Development (Beijing) Ltd.
2 Years
| Ask Lasest Price | |
| Model Number : | Multi2SDI |
| Brand Name : | TCHD |
| Supply Ability : | 300 Piece/Pieces per Month |
| Price : | $310.00 - $360.00/pieces |
Factory sales plug and play composite to SDI video converter for pc up/down scaling
TCHD Multi to SDI video converter is a high-quality, high-performance video signal conversion product. It Supports Support 3 BNC(YPbPr, CVBS) + 1 DVI(HDMI/DVI /VGA) inputs and 2 channels SDI outputs.Unlike the traditional converter products in current market, our Multi to SDI Converter which built in a professional image conversion processing chip, support the user-adjustable to set the saturation / brightness / contrast, and through automatic scaling and frame rate conversion, any input format video signal can be converted to a standard SD/HD/3G-SDI , compatible with all common HDMI, VGA and CVBS signals.
Description | Convert from DVI-D/VGA or Component/S-Video/Composite input to 3G/HD/SD-SDI output |
Feature | Buit-in up/down conversion engine Video enhancement with anti-aliasing and 3D deinterlacer Simultaneous 2xSDI output Hot-keys for video mode and device configrations Mini-USB port for configurations and software upgrade |

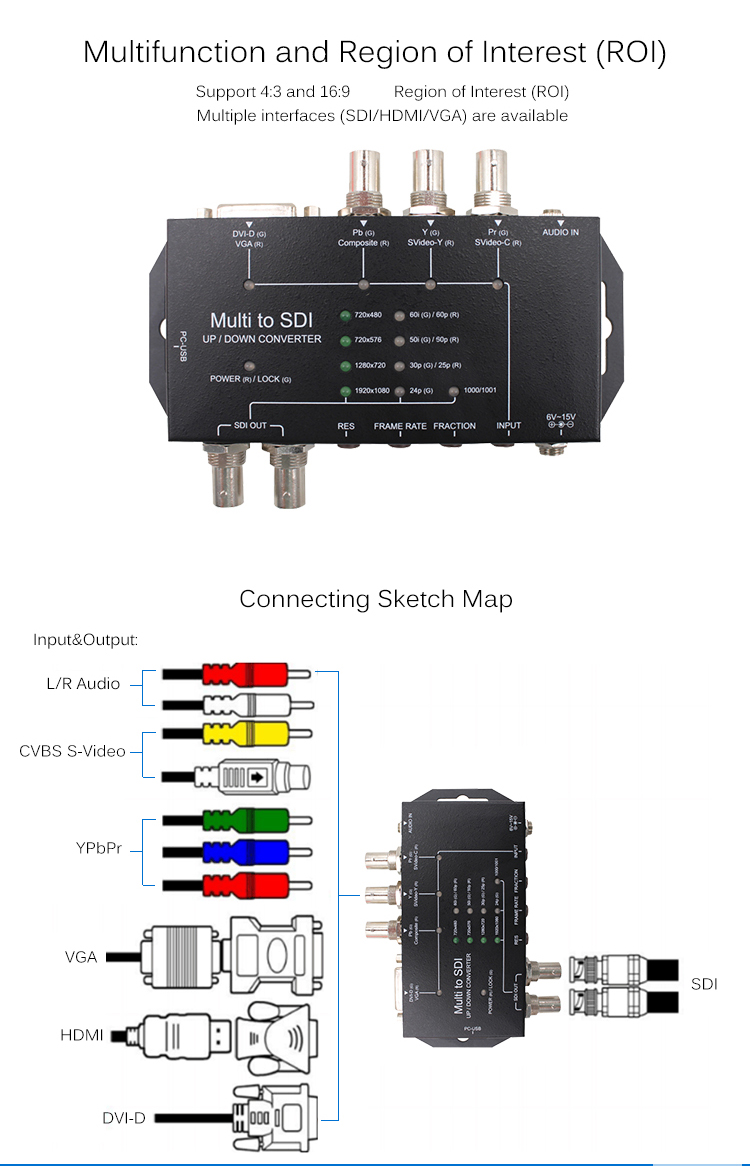

Input | DVHx1(Support DVI-D and VGA) BNHx3 for component/S-Video/Composite 3.5mm Phone jack for analog audio |
Output | Up/Down Converted SDIx2 |
Supported Video Input Format | Composite/SVideo Component DVI/VGA |
Supported Video Output Format | SDI |
Audio Input Format | HDMI/SDl:Up to 8 channels,24bit,48KHz |
Audio Output Format | Up to 8 channels, 24bit, 48KHz |
Plug & Play | YES |
DC In | 7.5V-15V |
|
|
