| Brand Name : | TCHD |
| Model Number : | SDI2Multi |
| Supply Ability : | 300 Piece/Pieces per Month |
| Price : | $310.00 - $360.00/pieces |
Wholesale SDI to DVI Multi region of interest (RIO)video to ip converter up/down scaling

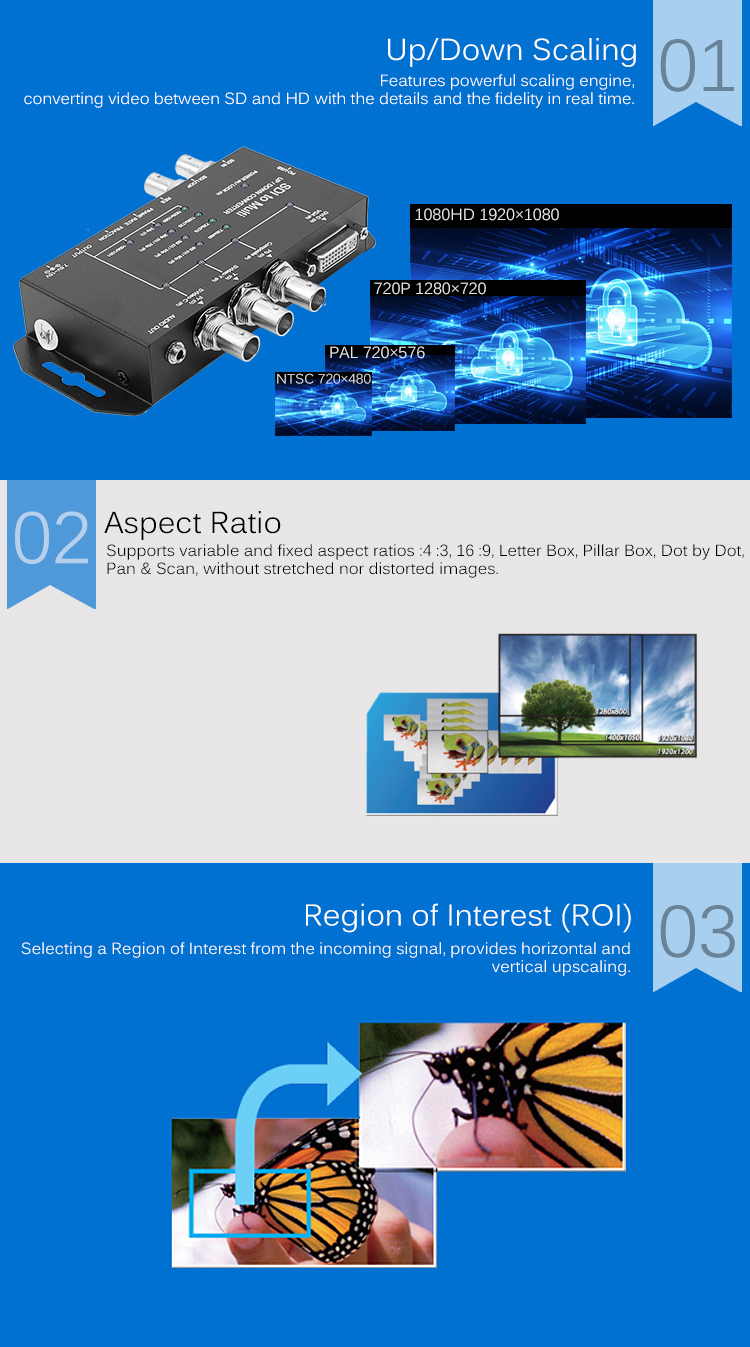

TCHD SDI to Multi video converter is a high-quality, high-performance video signal conversion product. It Supports 1 channel SDI input and 1 channel SDI loop out 3BNC(YPbPr, CVBS) and 1 DVI(HDMI/DVI /VGA) outputs.Unlike the traditional converter products in current market, our SDI to multi Converter which built in a professional image conversion processing chip, and with HDMI / VGA / CVBS video image enhancement, noise reduction,support the user-adjustable to set the saturation / brightness / contrast , and through automatic scaling and frame rate conversion, a SDI input signal can be converted to a standard output format video signal , compatible with all common HDMI, VGA and CVBS signals.
Description | Convert from 3G/HD/SD-SDI input to DVI-D/VGA or Component/S- Video/Composite video output |
Feature | Auto source format detection(3G/HD/SD) Buit-in up/down conversion engine with anti-alasing Simultaneous 1xDVI-VComponent/S-Video/Composite and 1xSDI output Re-clock function (for SDl output) Hot-keys for video mode and device configrations Mini-USB port for configurations and software upgrade |
Input | SDI x 1 |
Output | Up/Down Converted DVHx1(convertible to VGA) Up/Down Converted BNCx3 for Component/S-Video/Composite 3.5mm Phone jack for analog audio Loop-Through SDIx1 |
Supported Video Input Format | SDI |
Supported Video Output Format | Composite/SVideo Component DVI/VGA |
Audio Input Format | Up to 8 channels, 24bit, 48KHz |
Audio output Format | HDMI/SDl:Up to 8 channels,24bit,48KHz 3.5mm Phone Jack:Stereo,16bit,48KHz |
Plug & Play | YES |
DC In | 7.5V-15V |
|
|
