TCHD Digital Video Technology Development (Beijing) Ltd.
2 Years
| Ask Lasest Price | |
| Brand Name : | TCHD |
| Model Number : | TC-920 |
| Supply Ability : | 200 Piece/Pieces per Month |
| Price : | $165.00 - $200.00/pieces |
Full HD 1080p video recorder with integrated microphone
Introduction
With TC-920 Lecture Recorder, just press one button to record digital lesson contents or meeting presentations. With integrated microphone, recording HD lecture combined with voice. It is plug & Play, standalone working no need PC.The integrated microphone includes noise canceling technology to effectively capture the teacher's voice, and reduce irrelevant background noises for clear, pleasant audio. With one switch button, easily set the gain of microphone for different area room.
General function:

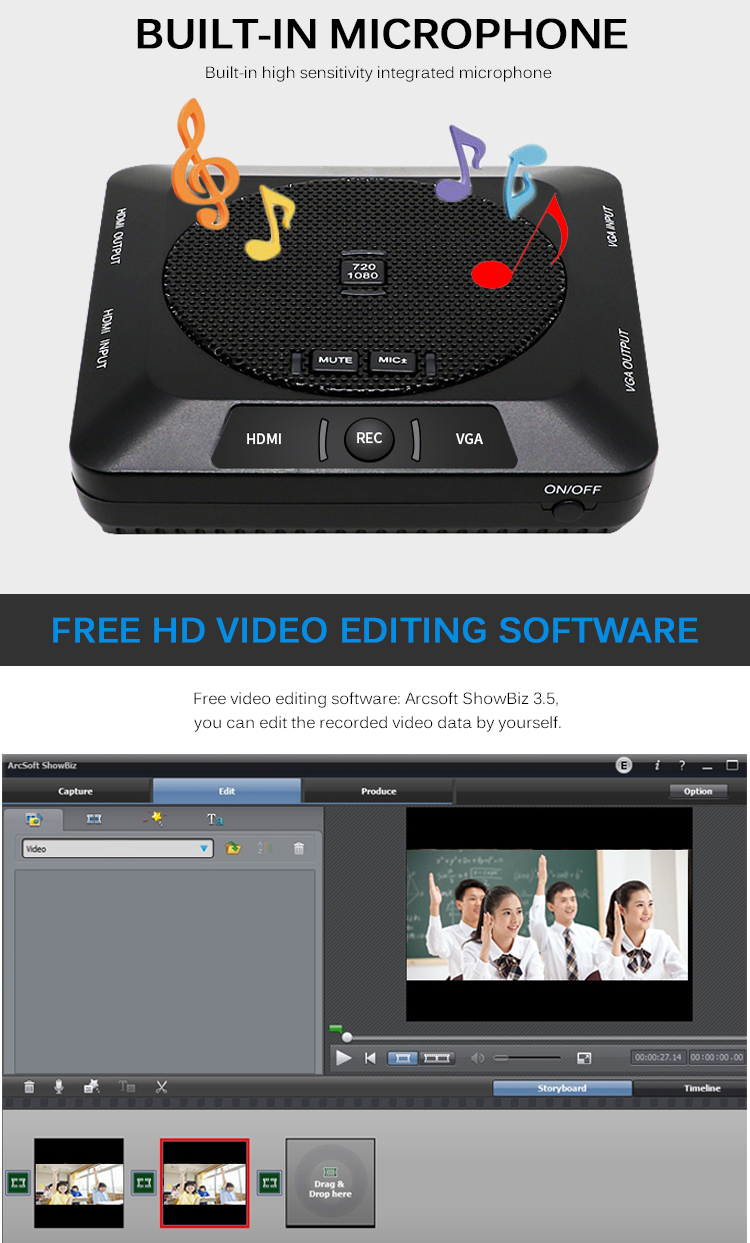

With built-in 360 degree microphone.
HD HDMI / VGA pass-through
Record entire lesson with voice for sharing by pressing one button.
With one-touch mute control.
Specification

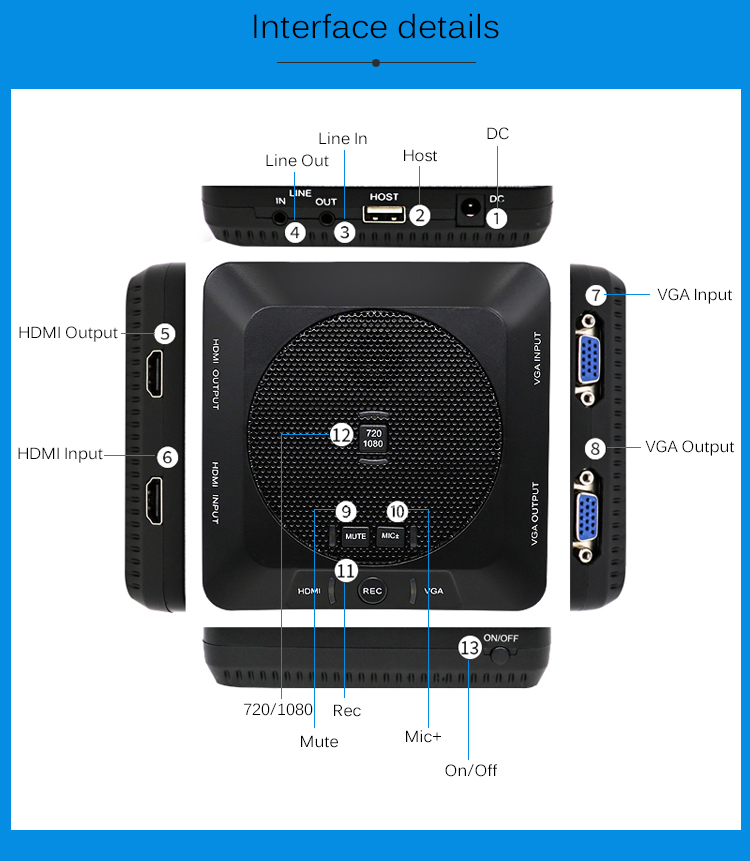

Interface | USB 2.0 Host |
Video Input | HDMI, VGA |
Audio Input | HDMI, 3.5mm Line In |
Video Output | Digital: HDMI (Pass through from HDMI and VGA), VGA (Pass through from VGA) |
Audio Output | Digital: HDMI (Pass through from HDMI and VGA), 3.5mm Line Out |
Codec | Hardware H.264 encoder |
User Interface | Record button, 720p/1080p switch button, microphone gain set button, microphone mute button |
LED indicator for working status. | |
Power on/off button | |
Dimensions | 115(L)*115(W)*28.3(H) MM |
Weight | 185g |
Package Contents | |
Device | TC-920 Lecture Recorder |
Others | 5V DC adaptor |
Standards | |
Storage Media | USB Drive Stick, Portable Hard Disk |
Max Capacity: 2T | |
Note: The exFAT format is not supported. | |
Resolution | Input / Pass-through: 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x 1080 (60p) |
Capture: 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (25p), 1920 x 1080 (30p) | |
Note: Upscaling is not supported. | |
Record Format | Video: MP4, Audio: AAC Stereo |
Record Quality | Max: 18Mbps@1080P 30fps |
Record File | Max: 2GB / Per File, With RTC (Real Time Clock) |
Record Place | Max: 140MB / Minute, 8.4GB / Hour |
Power Supply | DC 5V / 2A |
Applications | |
Software | Arcsoft Showbiz |
Video Editing | Timeline / Storyboard edit, Split / Divide Scenes, Multi Trim Scenes … |
Video Export | Upload to YouTube |
Portable Device: iPod, iPhone, iPod Touch, Apple TV, PSP, PS3, Xbox | |
File: MPEG 1 / 2 / 4, WMV HD, Quicktime (MOV) … | |
Operating System | Windows 8 (32 / 64 bit), Windows 7 (32 / 64 bit), Windows Vista (32 / 64 bit) |
CPU | Intel Core 2 Duo 2.8GHz, AMD Athlon 64X2 Dual Core 3.0GHz |
Memory | 4 GB RAM |
Graphics Card | VGA card with support for DirectX 10.0c or above |
Note:The size for each recorded file will be about 1.95GB (approx equal to 15 minutes for 1080p video), when your recorded video volume reach to 1.95GB, TC920 recorder will auto save a file, and continur to record next file. The recorder will auto stop recording when your storage is full.
|
|
